Installing CUPiD

Installing CUPiD#

This page follows the CUPiD Installation Documentation, with some tweaks specific to the NCAR super computer.

Task 0: Open a Terminal in JupyterHub for this Activity#

0.2 Open a terminal#

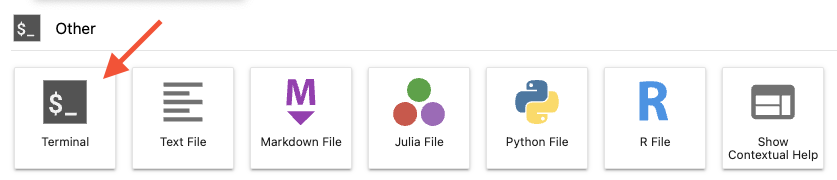

Open a Terminal instance by scrolling all the way down in the launcher tab and selecting Terminal. Jupyter Terminal This will open a terminal with the following prompt: USERNAME@crhtcXX:/glade/work/USERNAME/crocodile_2025>

Task 1: Clone CUPiD and Install Environments#

CUPiD is available from the NCAR organization on github.com. It requires conda to manage a few different python environments. The NCAR system administrators provide conda through a module, which you can access by running

module load conda

1.1: Clone the repository from github#

Running the following command will create a subdirectory named CUPiD in your current working directory:

git clone --recurse-submodules https://github.com/NCAR/CUPiD.git

The rest of this tutorial will refer to the location you installed CUPiD as ${CUPID_ROOT}. To be able to copy and paste blocks of commands directly, we need to add the variable to your environment.

Most of you are using bash or zsh, which have been the default shell on Linux and Unix computers for a while now. To set the environment variable run

cd CUPiD
export CUPID_ROOT=`pwd -P`

Note: This environment variable only exists in this specific terminal. It will need to exported again if you open a separate terminal, unless you modify your start files (see the NCAR documentation for this process for more information).

Using a different shell?

If you have changed your shell to csh or tcsh, you will want to run the following instead:

cd CUPiD
setenv CUPID_ROOT `pwd -P`

If you do not know for a fact that you changed your shell, you can probably assume you are using bash. To know for sure, though, run

echo $SHELL

1.2: Install two conda environments#

CUPiD needs a python environment with specific packages installed to run the CUPiD tools, while the diagnostic notebooks provided with CUPiD need a different set of packages.

To run CUPiD itself we use the (cupid-infrastructure) environment, then CUPiD runs the diagnostics notebooks with (cupid-analysis). We will use mamba to install these environments and the --yes option to avoid mamba waiting for approval before continuing with the install:

Install (cupid-infrastructure) and (cupid-analysis)#

cd ${CUPID_ROOT}
mamba env create -f environments/cupid-infrastructure.yml --yes && \
mamba env create -f environments/cupid-analysis.yml --yes

Notes:

  1. This is two separate commands separated by &&; the second command (installing (cupid-analysis)) will only run if the first command (installing (cupid-infrastructure) finishes successfully). Also, the \ is a line continuation operator - without it, the command would be on a single line and very long.

  2. If you remove the --yes flag, mamba will ask you to confirm the installation after it determines what packages will be installed.

Basic Walkthrough of CUPiD (cupid-diagnostics script and directory structure)#

While the CUPiD environments install, let’s talk about how CUPiD works. CUPiD can provide diagnostics for a single run, or compare a single run to a single baseline run. Future development will enable comparison of more than two different runs, but the next exercise in this tutorial will be using CUPiD to create diagnostics for a single CESM case that has already been run. This will be done by running the cupid-diagnostics command from the (cupid-infrastructure) environment.

(cupid-infrastructure) $ cupid-diagnostics --help
Usage: cupid-diagnostics [OPTIONS] [CONFIG_PATH]

  Main engine to set up running all the notebooks.

  Args:     CONFIG_PATH: str, path to configuration file (default config.yml)

  Returns:     None

  Called by ``cupid-diagnostics``.

Options:
  -s, --serial          Do not use LocalCluster objects
  -atm, --atmosphere    Run atmosphere component diagnostics
  -ocn, --ocean         Run ocean component diagnostics
  -lnd, --land          Run land component diagnostics
  -ice, --seaice        Run sea ice component diagnostics
  -glc, --landice       Run land ice component diagnostics
  -rof, --river-runoff  Run river runoff component diagnostics
  -h, --help            Show this message and exit.

Notice that cupid-diagnostics has a few options to allow you to run a subset of the default diagnostics, but the CONFIG_PATH argument (which defaults to config.yml) is the important argument. CUPiD provides a set of examples (found in the examples/ directory), each with its own config.yml file.

The Configuration File page of the CUPiD website goes into more detail looking at the key_metrics example, but in the Running a CUPiD Example we will look at the config.yml file associated with the regional_ocean example.

Directory Structure of CUPiD#

Before we dive into the details of how CUPiD works, let’s take a broader view of the CUPiD directory structure. As you can see in the CUPiD github repository, CUPiD has a bunch of subdirectories. For this walkthrough, we’ll talk about on just four of them:

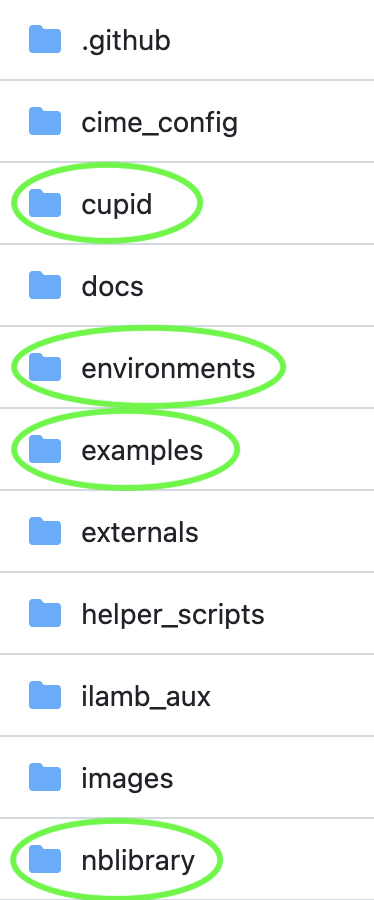

A list of 11 directories; cupid, environments, examples, and nblibrary are circled

cupid/#

This is the guts of the CUPiD python package that is installed in (cupid-infrastructure) (e.g. cupid-diagnostics runs cupid/run_diagnostics.py). Some of the more complex scripts are broken across multiple files: cupid-timeseries runs cupid/run_timeseries.py, which imports functions from cupid/timeseries.py.

environments/#

The environments/ directory contains conda environment files for three different environments. You are currently installing two of them:

  • environments/cupid-infrastructure.yml: builds (cupid-infrastructure), which provides the actual CUPiD functions, and

  • environments/cupid-analysis.yml: builds (cupid-analysis), which provides an environment for CUPiD to use to run diagnostics notebooks.

There is also

  • environments/docs.yml, which builds (cupid-docs) (used to create the CUPiD website). It is not needed for most CUPiD users.

examples/#

The examples/ directory contains subdirectories, each with its own config.yml file:

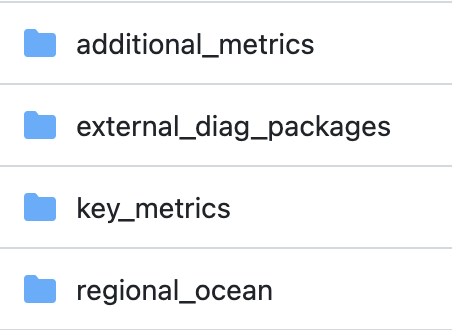

A list of 4 directories: additional_metrics, external_diag_packages, key_metrics, and regional_ocean

The directory names give a hint as to what the configuration file will provide:

  • key_metrics/ is the workhorse example; it aims to give a brief summary of a fully coupled CESM run (and comparisons to a baseline case).

  • additional_metrics/ goes into more detail than key_metrics. As you might imagine, it takes longer to run.

  • external_diag_packages/ pulls some key tables and figures from the output of the AMWG Diagnostic Framework (ADF), the land equivalent (LDF), and the International Land Model Benchmarking (ILAMB) project, and also links to the full output of those packages. Note that cupid-diagnostics does not run those packages directly, it expects the user to do so manually.

  • regional_ocean/ contains four notebooks that look at output from a regional MOM6 CESM case.

Spoiler alert: you’ll learn a lot more about regional_ocean on the next page.

nblibrary/#

CUPiD curates a library of notebooks that can be run by cupid-diagnostics if the config.yml file requests it. It contains subdirectories for each component of CESM:

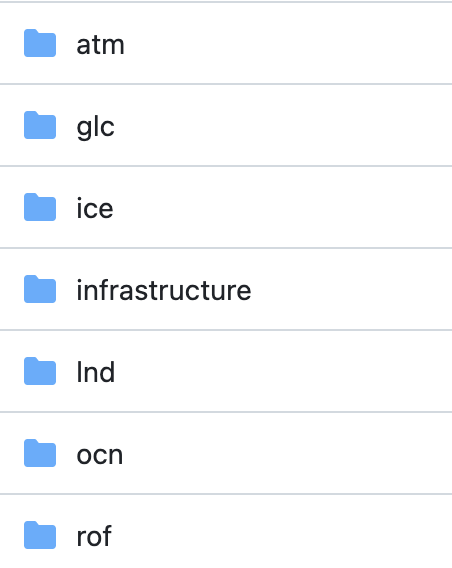

A list of 7 directories: atm, glc, ice, infrastructure, lnd, ocn, rof

And then each subdirectory contains one or more notebooks. For example, the ocn/ directory has:

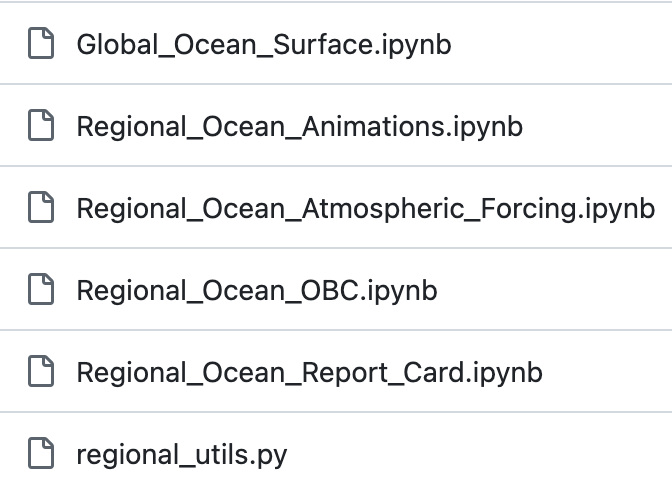

A list of 6 files: Global_Ocean_Surface.ipynb, Regional_Ocean_Atmospheric_Forcing.ipynb, Regional_Ocean_Report_Card.ipynb, Regional_Ocean_Animations.ipynb, Regional_Ocean_OBC.ipynb, regional_utils.py

Spoiler alert: you’re going to run the four notebooks starting with Regional_Ocean_.

If you want to create your own diagnostic notebook (we’ll talk about how to do that later in the afternoon), you would add it to the repository in the appropriate subdirectory.
